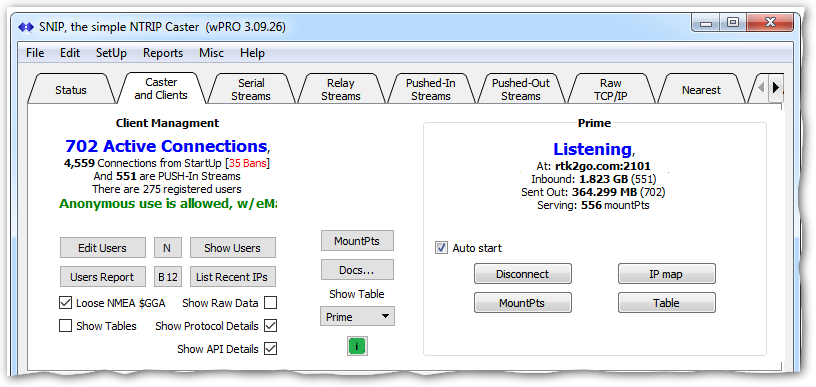

The Caster and Clients tab is used to quickly see and control how many clients are connected, and to see and control the overall state of the Caster itself.  Controls for basic SNIP setup for User Accounts (NTRIP Clients) and the Caster IP configuration can be accessed and set from here.

This tab consists of two “sides”

• The Client Management,  covered in this article.
  Here you add user accounts to allow others (Rover devices, or NTRIP Clients) to connect.
  The various check box control what details are shown in the console log area.
• The Caster Management,  covered in this article.
  Here you set the port and public IP that the SNIP NTRIP Caster will have.
  The IP Map button allows setting the Public and Private IPs used by the Caster.

These are discussed in further detail at the above links.

Secure Caster use

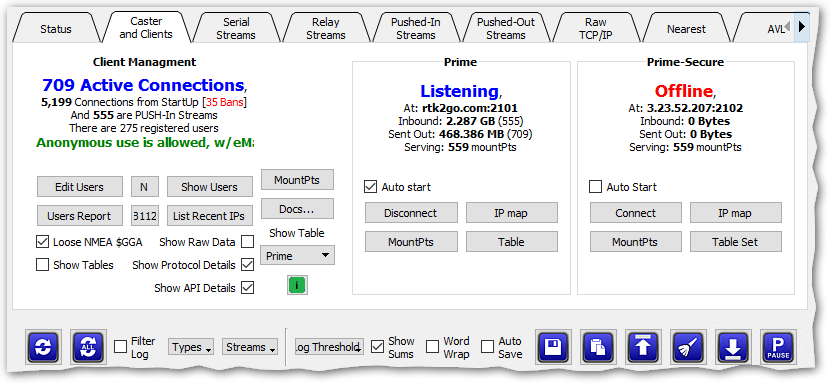

If you are using the the TSL/SSL Secure Caster Plug-In (a Pro feature) then you will see an additional Caster instance for the secure IP and port you have selected.

Multiple Caster use

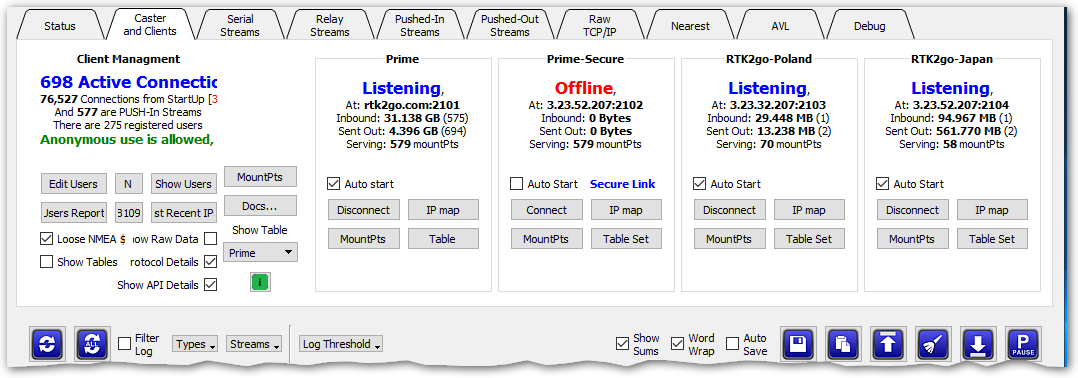

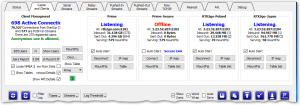

If you are using the Multiple Caster (virtual Caster) Plug-In (a Pro feature) to run multiple Casters on a single host machine,  then you will see an additional Caster instances listed on the right side for each virtual Caster.  The currently assigned IP:Port and URL, as well as the management controls to control which Base Stations can be accessed and set the same was as the ‘Prime’ caster is.
