Using the PFAT Filter Dialog Controls

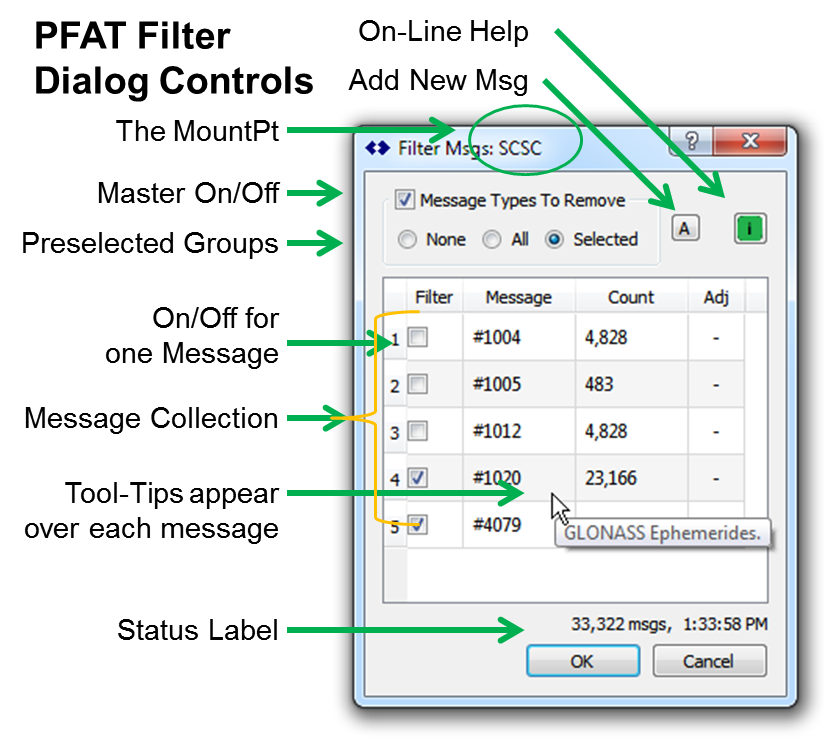

The Filter Dialog is shown below. A detailed review of the Filter controls settings follows. The general uses of message filtering in PFAT is discussed in this article. The Filter Msgs Dialog can be invoked on any parsed stream by right-clicking the streams content menu, of by clicking on the Filter icon in the PFAT display dialog.
The window can resized as needed when there is a longer list of filtered messages.
The MountPt
The MountPt (the name of the stream which is being filtered) is shown in the window title.
Master On/Off
This check box enables or disables the use of filtering in this stream. When disabled, the messages selected to be filtered are kept in the list but are not used. This supports an easy method of switching filtering on or off without having to reenter the list of messages again.
Pre selection Groups
These radio buttons provide a simple means to change the state of all the check boxes for all messages en masse.
Individual Messages Types
Each message has its own check box to enable or disable filtering it. The count value shows how many messages have been decoded since parsing was last restarted. The Adj cell is not used at this time.
ToolTip Use
A tool tip with the formal name of each message is displayed when the user hovers over the message type (MT) cell.
Broadcast Orbit
A button has been added (from SNIP Rev 3.17 onward) that will automatically add all the Broadcast Orbital messages to the filtering list. This is useful to quickly filter out such messages (MT1019, MT1020, etc.) from the stream. Many GNSS base stations will periodically send these messages, often when a new SV first appears over the horizon. This are not of any value to the rover devices (they already have their own copy), but increase bandwidth needed and hence the chance of a message error and re-transmission.
Status Label
The status label is updated at a ~1Hz rate and briefly reflects any changes made. The local time and a count of all messages received by this data stream are displayed.
Ok / Cancel Buttons
The Ok button accepts the edits, installs them in the filter and closes the dialog.
The Cancel button discards any edits and closes the dialog, making no changes.
Add a Filter to remove Broadcast Orbital Messages

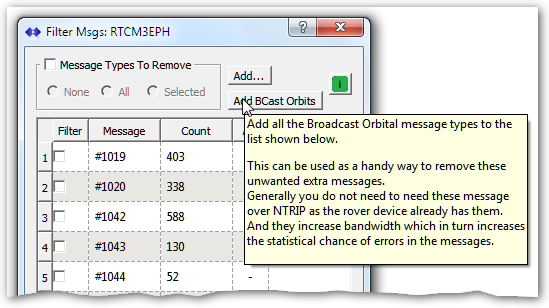

Added in SNIP Rev 3.17 is a new convenience button marked Add BCast Orbits, that adds a set of filters for all the Broadcast Orbital messages in a single button click.
Because the rover device (the NTRIP Client) is receiving these messages directly, they have almost no use when being send over NTRIP. They do waste bandwidth and they increase the statistical likelihood of a message failure and re-transmission events. Hence, is the customary to not send them. But many Base Station configurations default to sending such messages, especially when a new SV first rises over the horizon and is newly tracked. Use PFAT Filtering and this button to easily remove such messages.
Adding a New Message Type
It is easy to select and filter message types which are present in the stream when the Filter dialog is open. But what about adding a message that is not currently displayed in the stream?

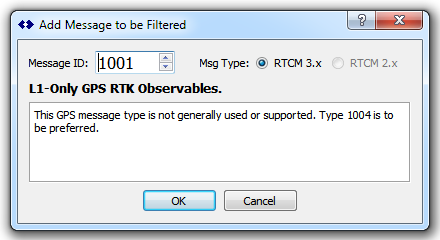

The Add New Message Button is used for this. When pressed, a secondary dialog appears as shown below. This dialog allows adding a filter for any valid message type (MT) found in the RTCM3 standard. This includes private messages, experimental messages, and MTs have not yet been defined by RTCM SC-104.
Note: At this time only the RTCM 3.x message types (MT) are supported by PFAT filtering. (Support for RTCM 2.x messages is planned).
Message ID:
The Message ID is set by a spin box, used to select the value of the desired MT value.
The bold text line below the Message ID value is the formal name of the RTCM3.x message, the same as is used in the RTCM3 cheat sheet page.
The text box below that provides commentary on the general use of the message, using the same text found in the RTCM3 message list, the cheat sheet web pages, and SNIP itself.
Use:
To add a new message type, simply set the spin box to the desired value and press Ok.
Pressing Cancel exits the dialog without make any changes or additions.
